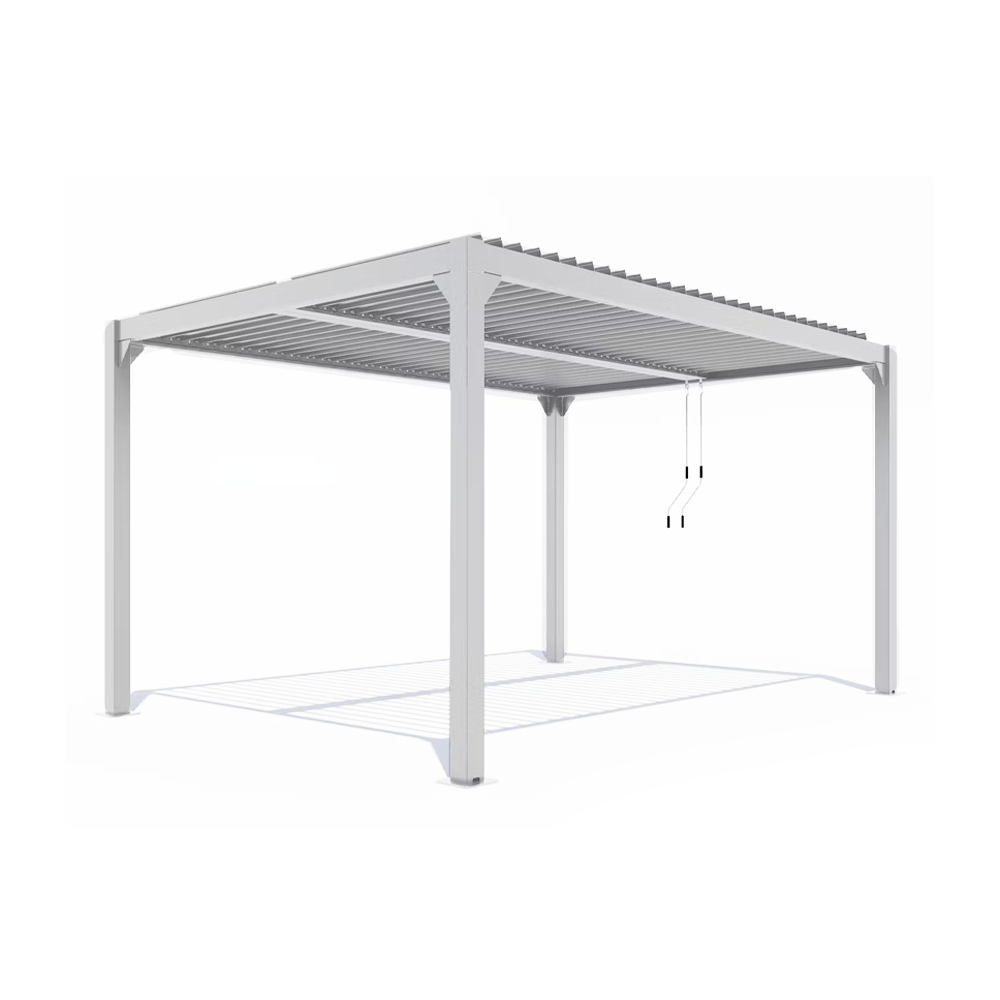

Louvre Roof System 3m x 4m (White)

Blinds are compatible with this Louvre Roof System on all sides and shutters panels can be positioned anywhere as this model features centrally mounted cranks. Both accessories replace the corner bracket during installation. For 4m sides (3.7m post to post) use a single 3.7m blind or up three 1.23m shutters. For 3m sides (2.7m post to post), use a single 2.7m blind or up to three 0.9m shutters. Treat 6m long sides as 2 x 3m sides for blinds & shutters. See images above for more details.

Create the stunning, multi-use outdoor area you’ve always wanted with this sleek, architectural louvre roof.

The integrated crank system allows you to easily and smoothly open or adjust the louvres. Open it right up and enjoy that perfect Kiwi summers day or keep it closed when the weather is changeable – the integrated gutters and internal downpipes make this roof system truly all-weather.

The crisp white powder coat finish and contemporary style blends well with most outdoor areas, while the straightforward instructions make this a great DIY upgrade. The built-in gutters feature hidden outlets through the foot of each pole, letting the water disperse without the need for ugly pipework everywhere.

With its strong aluminium frame, louvres and galvanised fittings this roof system is built to last, while being easy to clean and maintain.

Each bank of louvres is operated by a separate gear crank system, so you really can tailor the shade to your needs. Keep one half cool and shady, then open the other side to vent the BBQ.

This amazing value free-standing system is the ideal way to add some architectural style to decks, patios, pool areas or any other area that you want to transform into a stunning outdoor living room.

Features

Free-standing 3m x 4m louvre roof system

Create your ideal all-weather outdoor living space

Twin, adjustable louvre banks

Fully-integrated gutter system with internal downpipes

Gear crank system for infinite adjustment

Rust-proof powder coated aluminium construction

Sleek white finish & architectural style looks amazing anywhere

Straightforward DIY assembly

Centre crank model

5 Year Trade Tested Warranty

Specifications

Total dimensions: W 2.966m x D 3.958m x H 2.3m

Frame material: Aluminium, 2.0mm (beam) / 1.6mm (post)

Louvre panel material: Aluminium, 1.4mm

Top beam dimensions (each): W 45mm (horizontal) x H 120mm (vertical)

Post dimensions: 230cm x 10cm x 10cm

Louvre dimensions: L 135.4cm x W 14.5cm

Ground plate dimensions: 16cm x 16cm

Weight net/gross: 145/175.9kg
